Legend Suspension Heavy Duty REVO ARC Remote Reservoir Coil Suspension for '14-'24 Touring Models

Available in Black, Gold, and Clear Type III hard coat anodize, these premium shocks are engineered for touring comfort with Legend’s model-specific coil spring rates that reduce bottoming and enhance performance. Featuring tool-free adjustability, 13" and 14" options in standard or heavy-duty, and easy installation with spherical bearings, they’re built for convenience and customization. The 35 mm monotube design includes deflective disc valve stacks, a matched piston and base-valve system, and a low-friction sealing setup for a smoother ride. Independent compression and rebound adjusters allow precise, repeatable tuning for any rider weight or style, while the nitrogen gas bladder ensures fast, stiction-free response. Handcrafted in Sturgis, SD, these shocks deliver tailored performance for every rider.

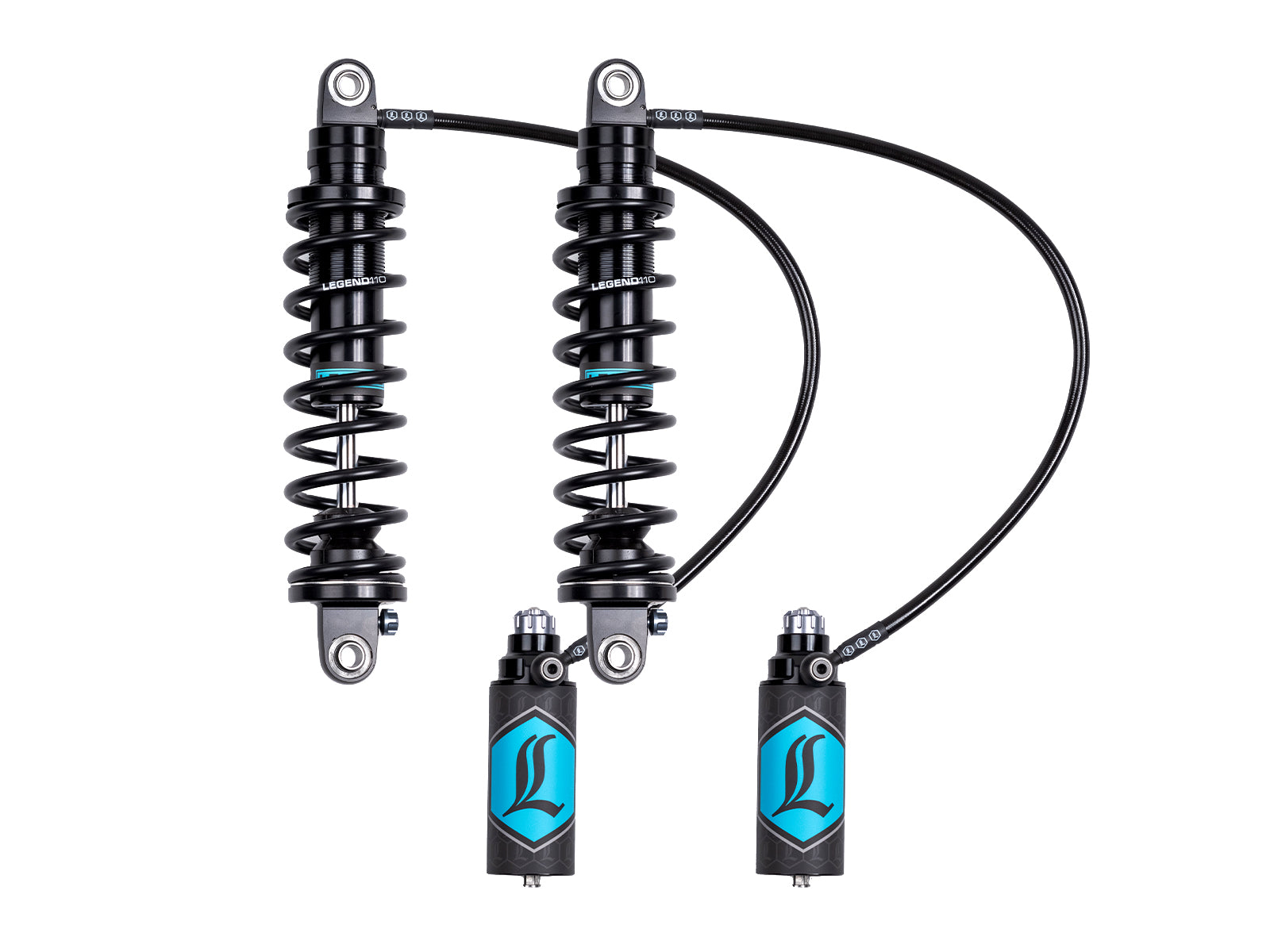

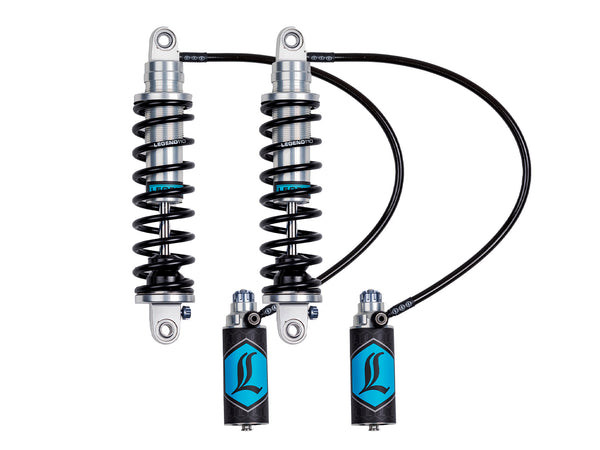

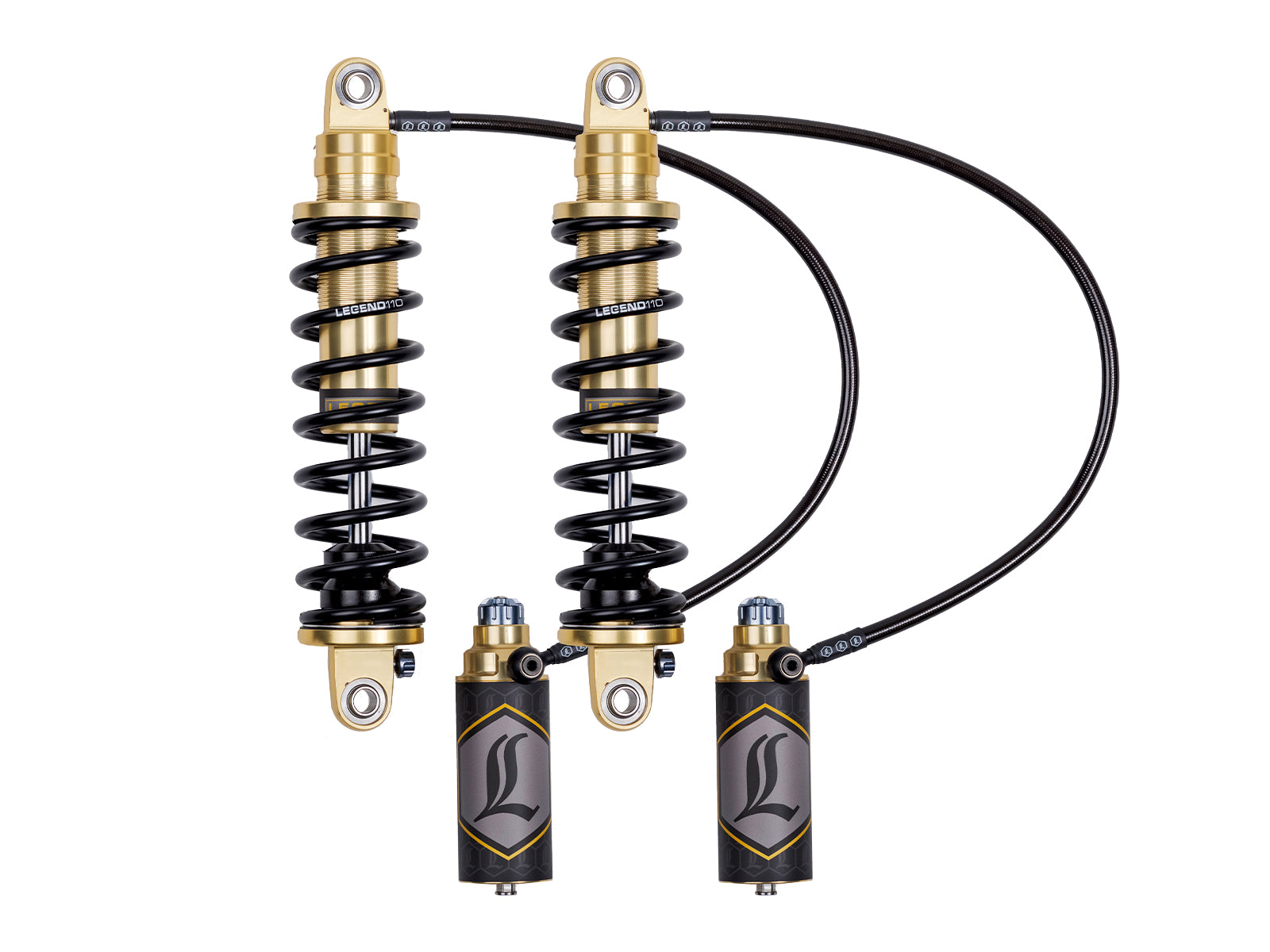

• Available in Black, Gold and Clear Type III hard coat anodize
• Legend's touring specific coil spring rates provide superior ride comfort, improved performance, and increased resistance to bottoming for all day comfort
• Adjusts by hand, no tools needed
• Available in 13" and 14", standard or heavy-duty applications
• Easy installation and alignment, provided by spherical bearings on both top and bottom mounting points
• 35 mm monotube construction
• Deflective disc valve stacks
• Balanced/Matched piston and base-valve design specific for motorcycle applications
• Low friction sealing system and sliding bearings for improved performance and feel
• Features independent compression and rebound damping adjusters that are specifically designed to make fast, precise, and repeatable changes to ride comfort and performance with a simple turn of a knob
• Provides optimum rebound and compression performance for any given rider weight, personal ride preference, or personal riding style
• Nitrogen gas bladder design allows ultra-fast response and stiction-free movement
• Light to heavy riders can fine-tune ride preference
• Aggressive to casual riding styles can tune to desired quality or personal preference
• Made by hand in Sturgis, SD USA
