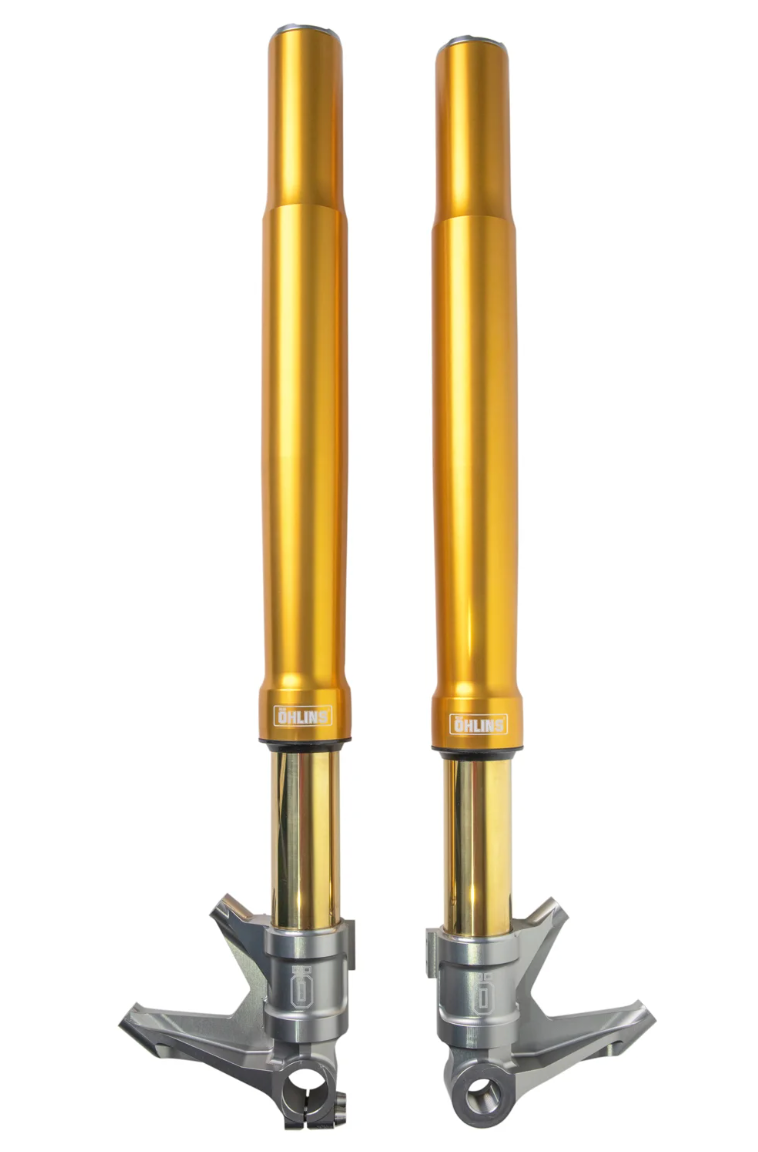

The American V-Twin 48 Fork introduces Öhlins’ front suspension technology to Harley-Davidson motorcycles for the first time. It uses a redesigned fork bottom that is optimized for both weight and stress, delivering a smoother and more comfortable ride, while refreshed Öhlins branding enhances its visual appeal. Built with advanced engineering, it is intended to significantly improve the overall riding experience for Harley-Davidson riders.
Inspired by Öhlins’ racing expertise, the fork utilizes a 30 mm NIX damping system that separates compression and rebound damping for greater control, precision, and stability. The inner fork tubes are also finished with a titanium nitride coating to reduce friction, resulting in a more refined and supple ride quality.
- Fully replaces both legs simplifying installation
- Weight and stress optimized fork
- 30 mm NIX damping system

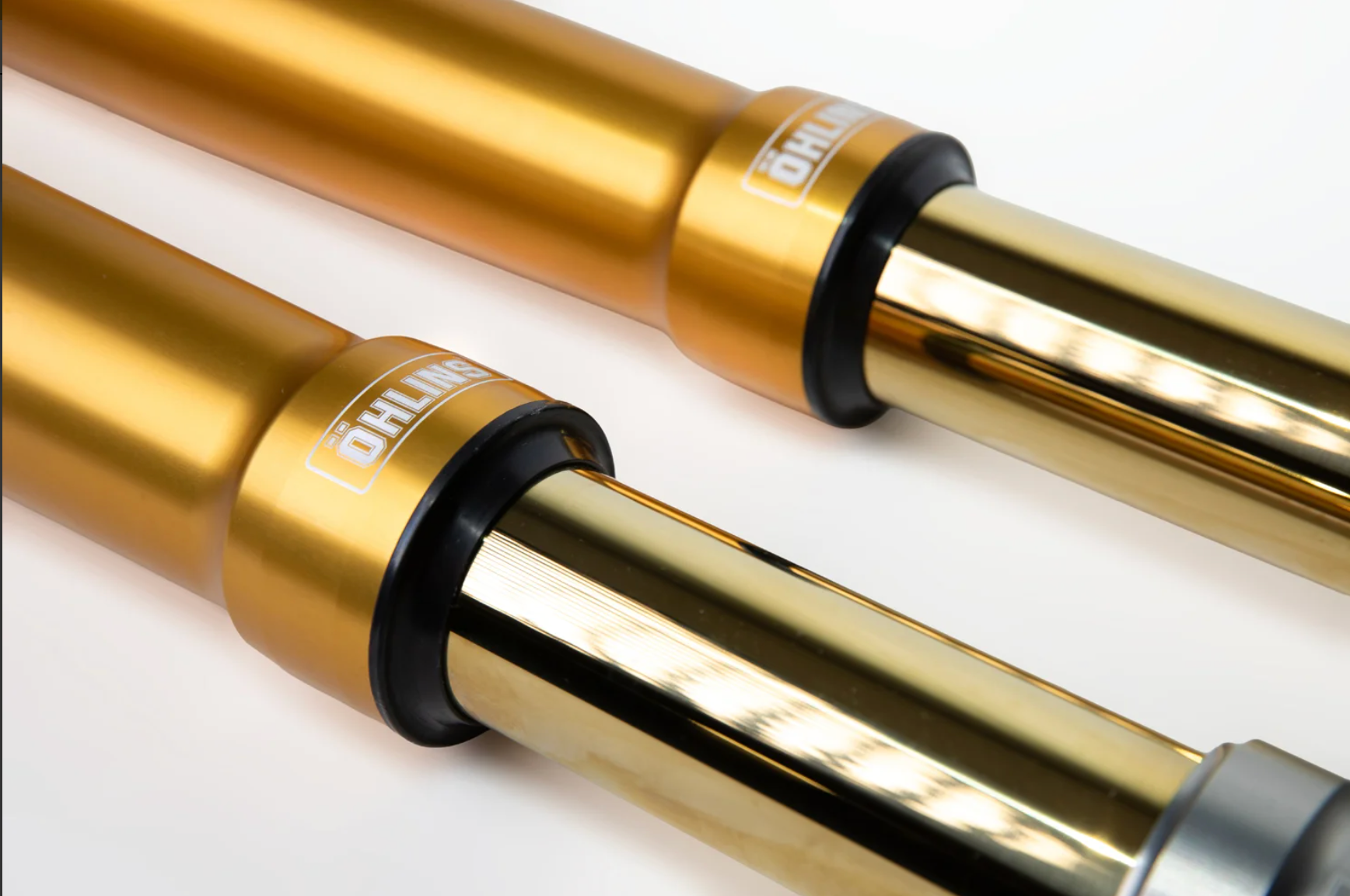

- Titanium Nitrate coated fork tubes reduce friction
- Race inspired titanium lower fork leg
- Preload and rebound damping adjusts from the top cap
- Stroke: 117 mm
- Spring Rate installed: 13 N/mm
- Multiple spring rates
- Length: 730 mm
